Project Description

If power transmission is carried out by gear coupling, module transmission must be used. Usually the module identifies the type of the gear and it is the ratio between pitch and p. Module changes according to the pitch. Here following the conversion table.

PitchModule
3,14161
4,71241,5
6,28322
7,85402,5
9,42483
12,56644
15,70805
18,84966
25,13288

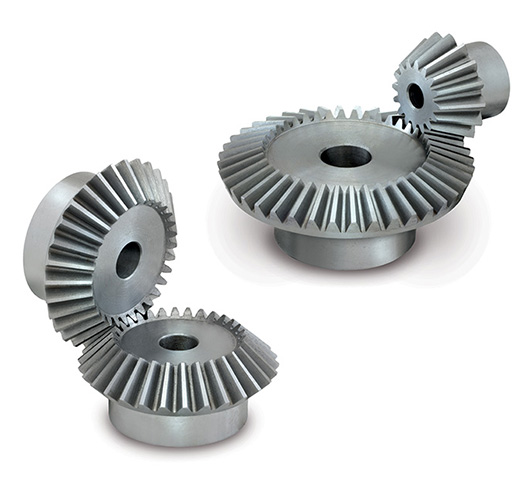

The function of bevel gears consists not only in gear reduction (according to ratio) but also 90 ° misalignment of rotation axes. Items with following ratio are available in our stock:

  • 1:1
  • 1:2
  • 1:2,5
  • 1:3
  • 1:3,5
  • 1:4

We can also supply gears with toothing according to UNI 6588 regulations ( we call it type A) or with toothing according to “Gleason System” regulations ( we call it type B).
