Project Description

V- belt pulleys fit V-belt so that transmission occurs by friction between the inclined sides of the belt and the pulley itself.

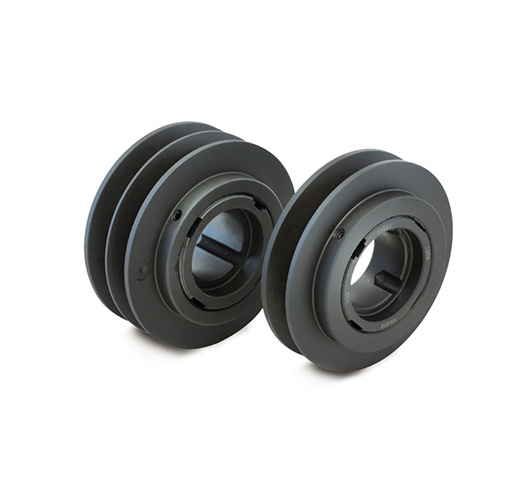

Adjustable pulleys are a particular family of V- belt pulleys. The adjustable width of the groove that fits the V – belt is the distinctive feature of this item. Material used is cast iron EN-GJL-250 UNI EN 1561.
Here following all type of available pulleys are showed. These are for taperbore.

External diameterSectionN° of groovesBush
84SPZ11108
95SPZ11108
100SPZ11108
108SPZ11210
108SPA11210
120SPA11210
120SPA21215
129SPA11210
129SPA21215
139SPA11610
139SPA21615
146SPA11610
146SPA21615
156SPA11610
156SPA21615
184SPA11610
184SPA21615
177SPA12012
177SPA22012
107SPA12012
187SPA22012
170SPB12012
170SPB22012
187SPB12012
187SPB22012
